FIT - with free/occupied LED

General

FIT – the electronic furniture lock with free/occupied LED display, for use with free locker choice or fixed assignment of RFID cards (13.56 MHz Mifare) or operable via Bluetooth.

Applications:

  • Gym
  • employer cabinets
  • wellness areas
  • Furniture of any kind with permanent power supply
  • …

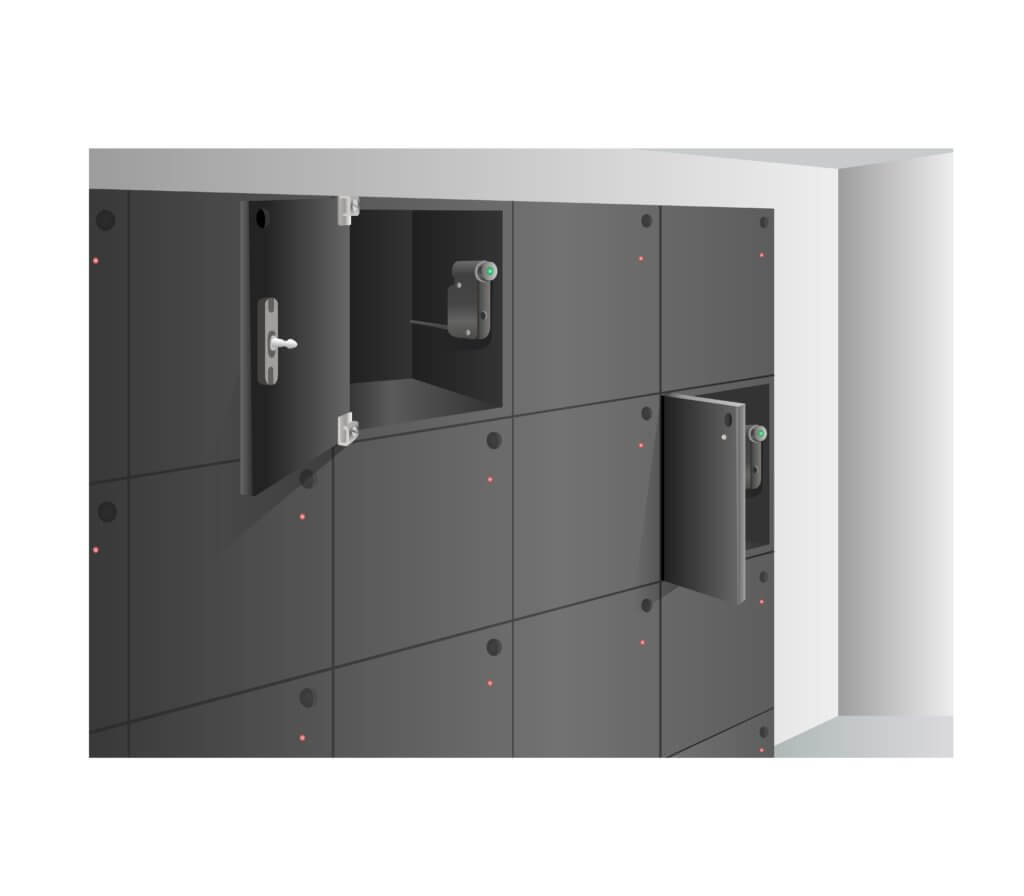

The lock is mounted on the fixed furniture part and the locking device on the door.

The different lock variants can be operated either with RFID cards, Bluetooth or for system developers via external relays. The range of the RFID cards is 22 mm – for thicker doors there is the possibility to extend the antenna for another 10mm, this can then be milled into the door.

electronic cabinet lock Datasheet for download

Included in the delivery:

  • lock with LED indicator
  • flexible locking part Latch75
  • adjustable antenna
  • 1,8 m cable

FIT 13 Gym - Free choice of locker

Visitors or employees can occupy free lockers with any RFID card (Mifare). Only this used card or the programming card can open the lock again. If the lock is opened with the programming card (administrator), it is available again for the next visitor. As an option, we can also offer this lock version with automatic opening after 12 hours. (FIT Gym 12h)

FIT Bolt - Fixed assignment of cards

The programming card (PROCARD13) can be used to activate up to 49 different key cards or key fobs. The LED does not necessarily have to be visible from the outside. Both opening and locking are carried out using the key card or key fob. This prevents a user from locking the card in the furniture.

Applications:

  • employer cabinets
  • All furniture with fixed power supply
  • …

FIT 3 seconds - Fixed assignment of cards

The lock locks automatically 3 seconds after opening and therefore a card could be locked in the furniture. This version is usually used when cards are connected with a loop.

The programming card (PROCARD13) can be used to activate up to 49 different key cards or key fobs. The LED does not necessarily have to be visible from the outside.

Applications:

  • employer cabinets
  • All furniture with fixed power supply
  • …

FIT Bluetooth

The lock is controlled via the free “pslocks” app. Further details.

Applications:

  • Furniture in buildings where users do not want cards
  • It can also be controlled using a dedicated app. Further details.

FIT DUAL (Bluetooth and RFID)

The lock can be operated both via the free “pslocks” app and via RFID cards. (Mifare) are controlled  controlled.

LED sign

For locking: The cabinet door is pressed shut and the card is presented, now the light turns red. For opening: The card is presented, now the LED turns green, which indicates that the cabinet is open/available again.

12V Power supply

With a 12V power supply, the FIT lock is free of usage of batteries. The power consumption is very low at 50 mA, 0.6 watts are required.

Up to 20 locks can be powered per FIT power supply. Every lock has a 1.8 m long cable, which can be extended with one or more FIT extension cables , a cable is 2m long.  Each 6 cables can be connected to a FIT extension 6x. Also the FIT power supply has 6 slots for connection. You can be directly connected with the trafo or the next FIT extension.

Extension cable

The cable is used to extend the cable on the lock and has a length of 2m. Up to 10 cables can be plugged together.

Extension 6x

The Extension 6x has six slots for connecting all the components with a cable length of 14 cm. It can be plugged directly into the power supply connector or into another Extension 6x.”

Wiring

Easy wiring, plug and play. Up to 20 locks can be powered per FIT power supply unsing the connectors extension 6x and if longer cables are needed with the extension cables 2m.

Applications

Public Mode / free locker choice
Free lockers can be locked by RFID /Mifare cards and only the card used for this purpose can open this locker again. For emergency opening, an authorized person has a programming card (administrator card) with which all lockers can be opened.

Procedure: The customer places his valuables in a free locker, closes the door and occupies this locker by briefly holding his card to the lock. The lock locks and the LED status indicator changes to red. If the card is held to the lock again, the lock opens again, the customer can remove the valuables and the LED display changes back to green. Now the lock can be occupied by the next user/customer.

Use at: Fitness studios, Spa areas, employee lockers

Private mode / fixed assignment of the RFID cards
With the programming card, the administrator can activate and, if necessary, deactivate up to 49 RFID cards of users. Optionally, the FIT lock can also be equipped with a Push-To-Open / Tip-On. The door opens automatically as soon as the lock is opened by the user and there is no need for a handle on the door.

Use for: Staff cabinets, office cabinets

Special solutions

Due to our production team in Austria, we are very flexible in the production of special solutions such as:

  • Bluetooth control instead of RFID cards (can also be controlled with your own app)
  • DUAL with RFID and Bluetooth Technology
  • 2V or 12V for external control with relay
  • Feedback contact (door open / closed)
