RADIO CONTROL

Radio control

Wireless furniture locks are modern security systems that work wirelessly and are operated with a remote control.

They offer a convenient way of securing furniture or cabinets and opening them remotely.

The advantage of radio lies in the wireless communication over a long distance, which makes it possible to open cupboards, drawers or cabinets without the need for cables.
This offers flexibility and mobility, as devices can be used independently of fixed connections.

Application examples:

  • Opening display cases at a petrol station to secure alcohol
  • Opening cabinets with cigarettes for customers in a store
  • Wherever an authorized person wants to open furniture remotely

1-5 channel "Carefree package" with "Call button"

If the customer is already standing in front of the shelf with cigarettes, watches, spirits or other valuables, they can send a request using the “call button”. The owner is then alerted and can open the corresponding lock.

With the optional call button, an acoustic and visual signal sounds at the receiver.

  • Completely self-sufficient operation
  • Saves time and effort for the operator
  • Via bidirectional encrypted
  • Wireless connection controllable via WLAN
  • A maximum of 5 door units can be controlled per control unit
  • Signaling the status of the lock (open/closed)
  • Visual and acoustic signaling of the opening request (bell)
  • Alarm in the event of non-locking
Optionally, we can issue an alarm on the control unit if the door is not closed within 10 seconds.

Furniture locks Cabinet locks

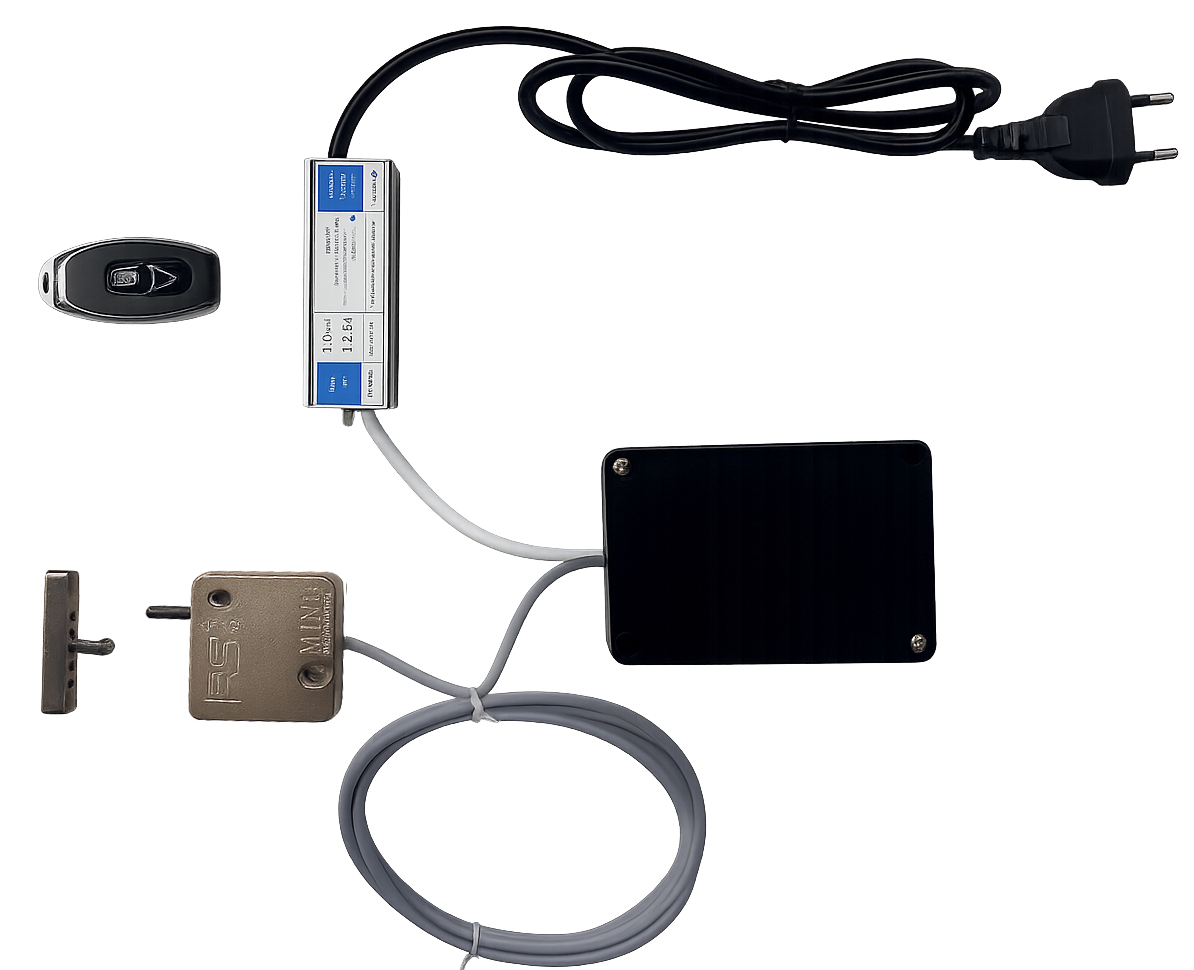

With a minimum installation height of just 14 mm, the MINI lock offers the ideal combination for radio control.
Optional: an integrated spring mechanism that allows the door to spring open by approx. 3 cm as soon as the radio transmitter is operated.

Connection:

  • Gray- GND / minus
  • Brown– open
  • Yellow – close

Radio transmitter Hand-held transmitter 4 channel

Depending on the application, we offer 1-channel to 4-channel transmitters.
Up to 10 locks can be opened simultaneously per channel.

Radio transmitter permanently installed

If the transmitter always stays in the same place, the non-contact desktop transmitter is certainly the ideal addition, as it won’t get lost.

Radio receiver

This slim receiver, which can be adjusted via Bluetooth, is usually used to implement solutions in the store fitting of petrol stations and food markets with just one display case

Radio receiver 4 channel

The 4-channel radio receiver can be used to operate up to 4 groups of locks with several radio transmitters.

For example, you can open display cabinets, drawers and cabinets for alcohol or tobacco from several cash registers.

Special solutions

With our specialists from the “radio world”, we can offer a wide range of solutions such as

  • Wireless control unit with fingerprint or via code entry
  • 12-channel radio modules for compact applications with many showcases
  • Wireless push-buttons that generate the necessary energy through movement and therefore do not require a battery
Ask us – we will be happy to help you

Special solutions Highlights

Other key highlights of our system:

  • Battery OR mains operation of the receiver and control unit
  • Integrated call function (“bell button”) on the sales unit – the customer can communicate their opening request directly
  • Visual signaling of the status on the call button (acoustic signals on the receiver)
  • Optional alarm when open
  • Battery monitoring and alarm for hand-held transmitter, call button and receiver unit (!)
  • No app, no external device and no software required
  • Pairing the transmitters with the control unit directly on the device (learn mode)
  • Professional design of the components
  • Everything from a single source, i.e. we supply an integrated system as a complete solution instead of complicated individual components.
