TWO - to lock two sliding doors at once

TWO

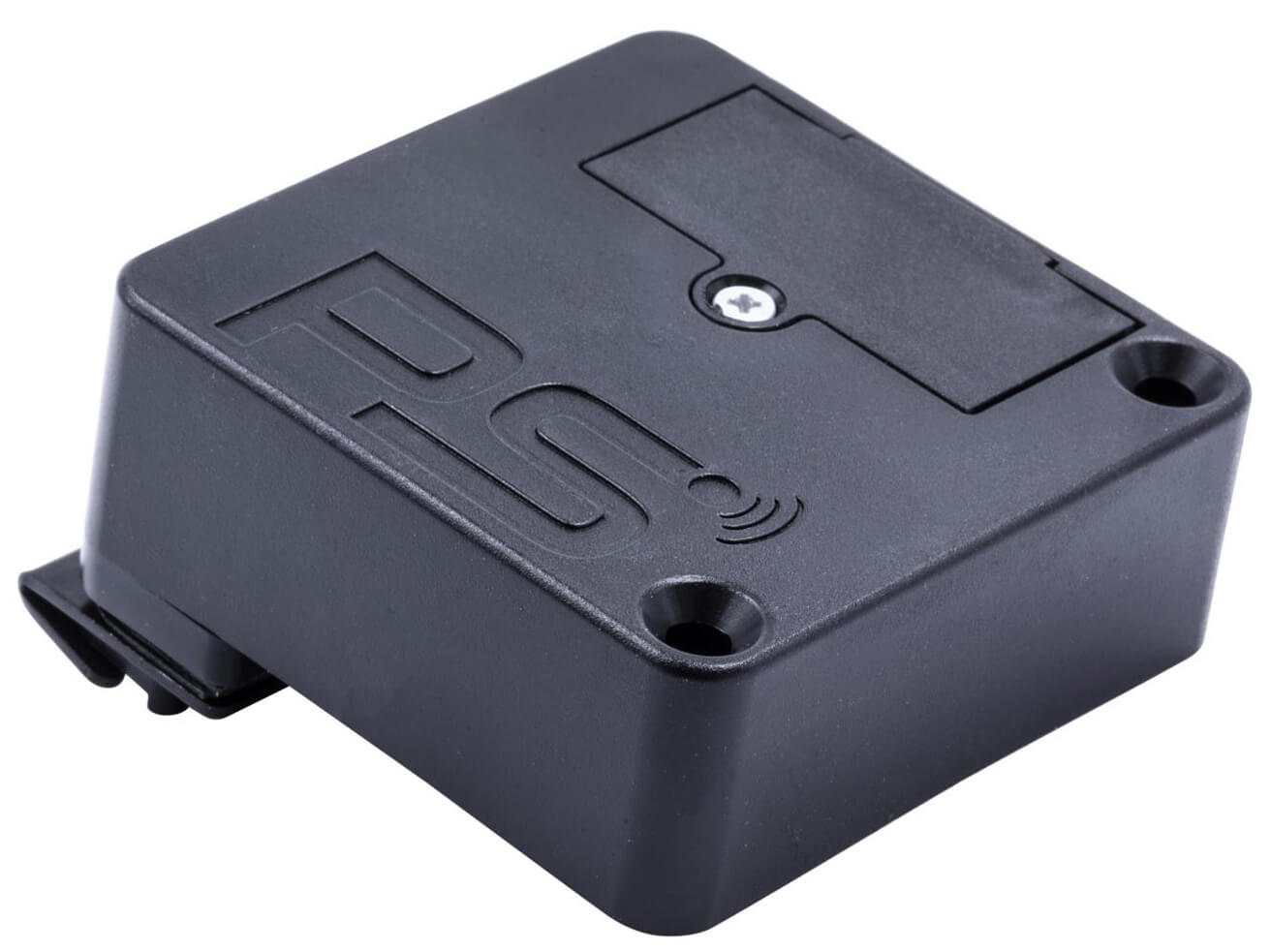

The TWO lock is an electronic furniture lock which is installed in between two sliding doors. For wooden doors this is bolted and is not visible from the outside. For glass doors, the lock is glued with the 3M adhesive film and the closing part with UV adhesive glue.

Due to the crack protection in the closing part, the lock cannot be opened by pulling on the door.

There are two standard versions: The TWO 10 (5 mm glass door thickness + 5 mm space between the doors) and the TWO 16 (12 mm wood door thickness + 4 mm space between the doors).
Further dimensions can be produced on request.

The RFID reading range and battery life depend on the technology used and the quality of the RFID key units (cards, fobs, stickers or bracelets) or battery used.

electronic cabinet lock TWO10 Datasheet for download

electronic cabinet lock TWO16 Datasheet for download

TWO 125

  • Access control for up to 49 RFID keys
  • EM4102/ EM4200 RFID Technology

Programming instruction RFID

Article Nr:Features:Technology:
TWO 125 10Made for glass sliding door with 5 mm + 5 mm space125 KHz
TWO 125 16Made for wooden sliding door with 12 mm + 4 mm space125 KHz

TWO 13

  • Access control for up to 49 RFID keys
  • Mifare ISO 14443A RFID Technology

Programming instruction RFID

Article Nr:Features:Technology:
TWO 13 10Made for glass sliding door with 5 mm + 5 mm space13,56 MHz
TWO 13 16Made for wooden sliding door with 12 mm + 4 mm space13,56 MHz

TWO BT

  • Thanks to the Bluetooth technology it can also be used in metal cabinets.
  • Controllable with the “PSLocks” app or with your own app (interface description)

Programming instruction Bluetooth

Article Nr:Features:Technology:
TWO BT 10Made for glass sliding door with 5 mm + 5 mm spaceBluetooth
TWO BT 16Made for wooden sliding door with 12 mm + 4 mm spaceBluetooth

Accessories
